Improved ergonomics in the OR
Ergonomics during endoscopic surgery is even more important than with conventional surgery. This is because endoscopic procedures may take longer. By the trocars fixed instruments, the members of the surgical team are additionally longer in the same position.

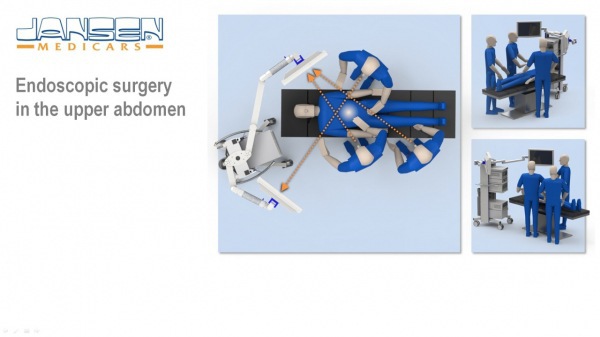

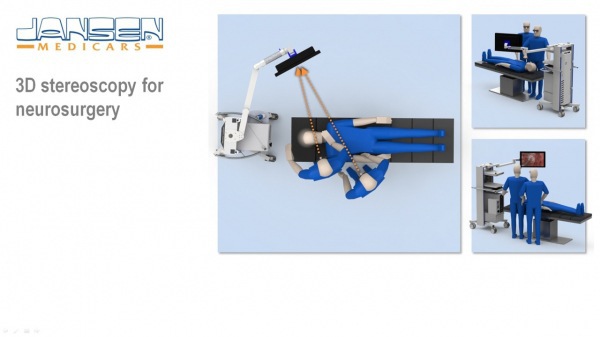

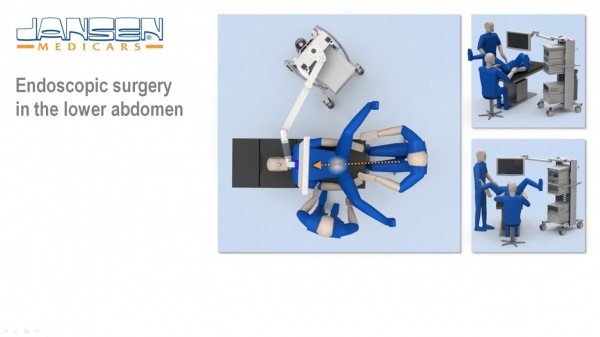

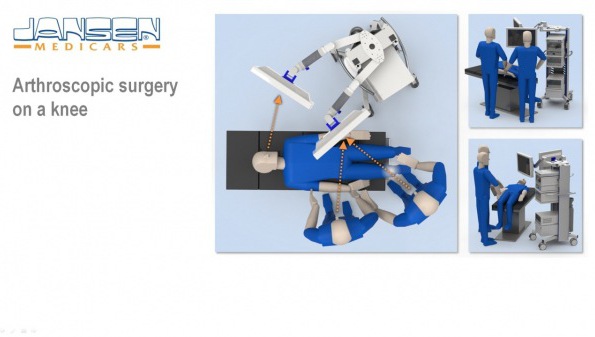

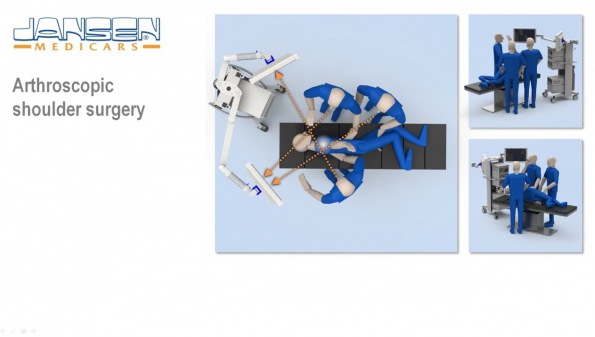

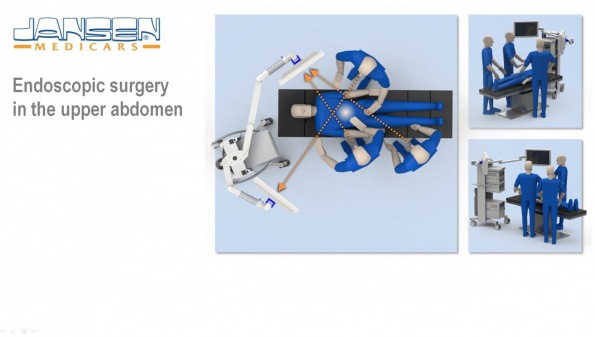

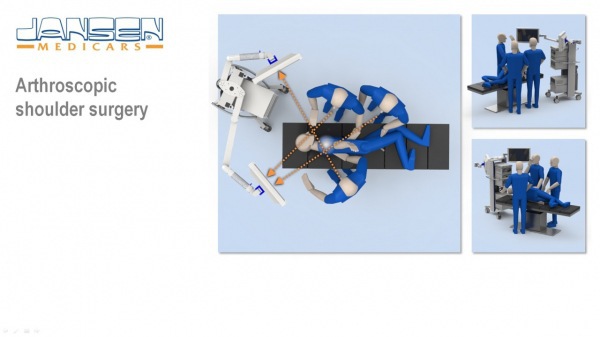

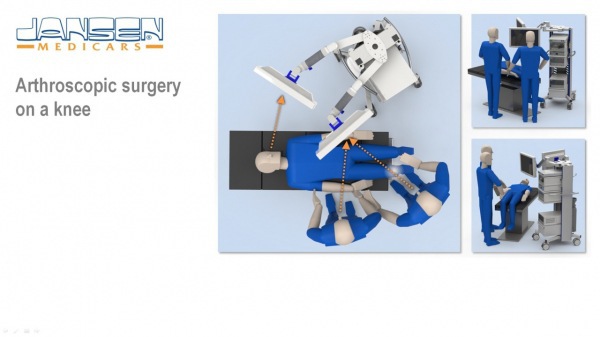

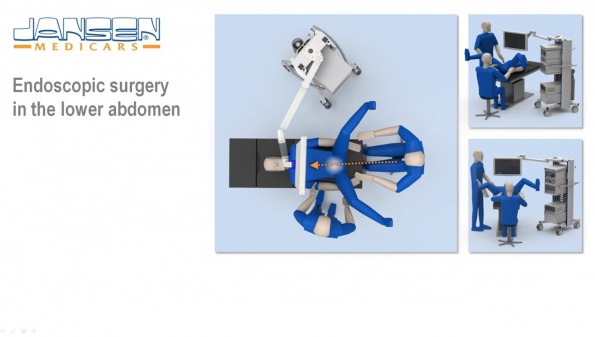

The arrangement of the display relative to OR staff directly determines the posture of the neck. In poor ergonomic setup the direction to the screen differs from the direction to the working area. The surgeon has to rotate his head to observe the surgical screen. Prolonged standing in this in this extreme position increases the risk of physical complaints for the surgeon (in this case mainly neck pain).

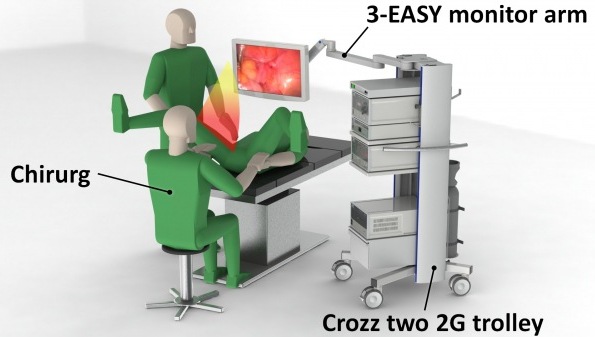

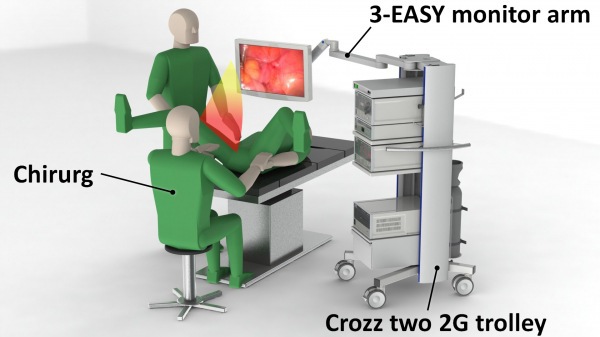

The best screen position for the surgeon is right for him and as close to his working area as possible. This is the most optimal position where both the hands and the surgical monitor are in the eyeshot at the same time. Both working direction and viewing direction are the same, optimizing the efficiency and accuracy of the surgeon as well as minimizing the hazard of a neck injury.
The Crozz two 2G is the successor of the successful Crozz two medical cart. In addition to the improved accessories and the new dual wheels, the new 3-EASY monitor arm system and the advanced electrical system of the cart the most important improvements .
The Tripple Element Arm System 3-EASY® consists of a monitor arm with three arm elements instead of the usual two arms. This innovation provides more freedom of movement of the surgical monitor during surgery. Depending on the procedure, the monitor can be optimally positioned, also when the surgeon sits during the procedure.
The 3-EASY Triple Element Arm System integrates in a nice way the long monitor arm on a central pivot point . The long version of the arm has a length of 140cm , and includes :
- 4 pivots
- 1 lift arm
- 2 extensions
The system also includes a short version of the arm , which can also be used as the second arm. The short arm is 85cm in length and contains :
- 3 pivot points
- 1 lift arm
- 1 extension
The main advantages of the new arm system are:
- Better integration into the trolley
- Optimized Multi - Arm solution
- Power and video cables go through the arm
- Better positioning of the monitor (more flexibility during use )
- Optimized for transport: the arm is very compact when folded
- More friction in the pivots for improved stability
- Easier to clean
